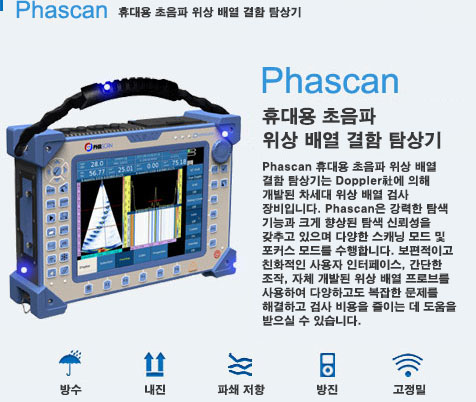

PA module |
Conventional UT |
| Config. |
pulser/receiver |
32/128 |
2/4 |
| range |
9900μs |
9900μs |
| velocity |
635-15240m/s |
635-15240m/s |
| Pulser |
test mode |
PE/PC |
PE/PC/TT/TOFD |
| voltage |
50V/100V |
50V/100V/200V |
| pulse shape |
negative square wave |
negative square wave |
| pulse width |
30-500ns |
30-500ns |
| rise time |
<8ns |
<8ns |
| PRF |
20KHz |
20KHz |
| delay |
10μs/2.5ns |
10μs/2.5ns |
| damping |
NA |
50Ω/ 500Ω |
| Receiver |
gain |
0-80dB |
0-80dB |
| bandwidth |
0.5-15MHz |
0.5-15MHz |
| input impendance |
200Ω |
200Ω |
| input capacitance |
60pF |
60pF |
| delay |
10μs/2.5ns |
10μs/2.5ns |
| Data Acquisition |
digital sampling |
100M(10bit) |
100M(10bit) |
| No. of data points |
8192 |
8192 |
| No.of focal law |
1024 |
NA |
| focus type |
depth/half path/projection/focal plane/auto |
NA |
| rectify |
FW/HW+/HW-/RF |
FW/HW+/HW-/RF |
| synchronization |
pulse/gate |
pulse/gate |
| Scan/Display |
type |
linear/sectorial/static/depth |
NA |
| display mode |
A/B/C/S |
A/B/TOFD |
| unit |
mm、inch |
mm、inch |
| DAC |
points |
16 |
16 |
| TCG |
points |
16 |
16 |
| max gain slope |
20dB/μs |
20dB/μs |
| dynamic range |
40dB |
40dB |
| Gate |
gates |
A/B/I |
| threshold |
0-98% |
| trig mode |
peak/edge |
| Report |
|
HTML |
|
| Data Storage |
Storage devices |
USB devices/SD card |
| Display Screen |
size |
10.4 inch |
| Resolution |
800*600pixel |
| type |
TFT LCD touch screen |
| I/O Port |
USB |
3 |
| internet |
10/100M |
| video output |
DVI/VGA compatible |
| encoder |
applicable |
| Language |
|
English/Chinese/French/Russian |
| Power Supply |
batttery |
Lithium lon Battery |
| charging |
charging on the host while operating |
| Battery life |
6h |
| Housing |
dimensions |
325mm*230mm*130mm |
| weight |
4.5Kg(without battery) |
|
