MsSR-2020D uses a notebook to  observe the waveforms.  With MsSR-2020D, clean signal is  acquired to detect 2 ~ 3% corrosion  of the cross  section.

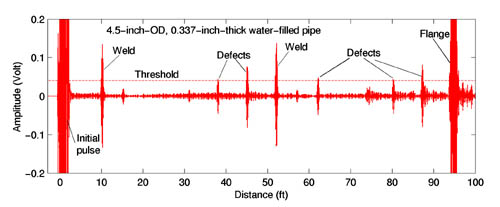

검사 결과 화면

프로세스된 검사 결과 화면

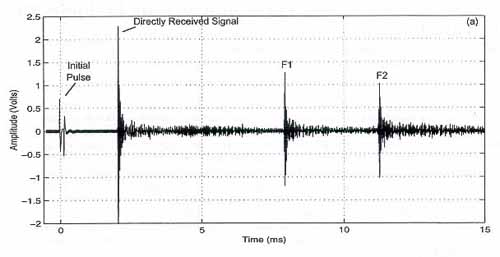

Detected signals from a 4.5-in. (114.3-mm)-OD, schedule 80,  steel sample when the pipe was filled with air.

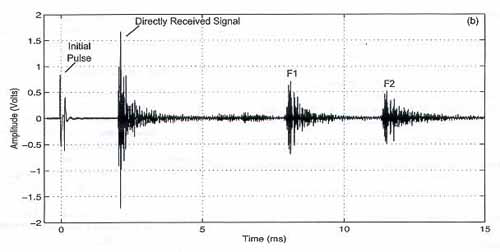

And filled with water.

The configuration fo the pipe sample is shown in.
