| Model |
SONOHARD SH-6 |
SONOHARD SH-5 |
SONOHARD SH-75 |
| probe |
Manual |
Motorized
and manual switchable |
| Indenter |
Diamond indenter for micro-vickers
(a pyramid having an angle between opposite planes 136˚) |
| Test load |
Approximately
2 kgf (4.41 lbf) constant load spring |
| Measuring range |
Standard type :
HV / HRC
Other combinations :
available two scales from followings |
Following four
scales are
componented standardly |
| 1. Vickers HV 50 ~ 999 |
2. Rockwell HRC 10 ~
70 |
| 3. Brinell
HB 85 ~ 550 |
4.
Shore HS 20 ~ 99.9 |
|
| Measuring accuracy |
HV
/ HB ± 3% of reading. HRC / HS ± 1.0 |
| Applicable test materials |
Primarily steel, other materials may be tested
using a standard calibration block. |
| Measuring displayed |
Digital
(4 figures LED) |
Digital(LCD)
with backlight |
| Unit for digital presentation |
1
HV, 0.1 HRC, 1 HB, 0.1 HS |
| Operating temperature |
0℃
~ 50℃ (Instruments) |
| Power source |
AC
110 / 200 V (±10%) and Ni-Cd Battery (rechargable) |
| Display unit dimensions |
SH-6A
200(W) × 68(D) × 100(H)
SH-5A 200(W)
× 70(D) × 100(H)
SH-75 190(W)
× 110(D) × 109(H) |
| Display unit and probe weights |
Display unit
0.7 kg |
1.1
kg |
1.5
kg |
| probe
0.35 kg |
0.4
kg |
0.4
kg |
| Carrying case |
350(W)
× 105(D) × 260(H)mm, 1.2 kg (SH-5A, SH-6A)
358(W) × 155(D) ×
267(H)mm, 1.9 kg (SH-75) |
| Other specifications for
SH-75 |
| Display |
a. Measuring value |
3 figures |
d. MIN : value |
3 figures |
|
b. Times |
2figures |
e. δ |
4 figures |
|
c. MAX : value |
3figures |
f . χ |
4 figures |
|
| Preset |
a. Upper |
b. Lower |
c. Times |
d. cancel |
|
| Output |
a. Alarm : GOOD / NO GOOD |
b. RS-232C |
|
c. Start /
Stop for on-line measurement |
|
| Data
memory : 4000 points of measured values |
| Measured
calibration values : Max. 10 values memory and recall |
| English
or German language displays are selectable (Factory modification) |
Standard components
(1 pce each) |
| 1. Display unit |
2. Probe |
| 3. Probe with attachment
(standard) |
4. Probe cable 1.5 m |
| 5. AC adapter / recharger |
6. Carrying case |
| 7. Reference test block (HV scale) |
8. Instruction manual |
|
| Optional accessories |
| 1. Measuring stand |
2. Test block (HV, HRC, HB, HS) |
| 3. Probe attachment for pipe materials |
4. Probe attachment for inner races |
| 5. Printer with cable (SH-75 only) |
6. Cable for RS-232C output(1m) (SH-75 only) |
| 7. HRB Scale (HRB50-70)
/ (SH-75 only) |
|

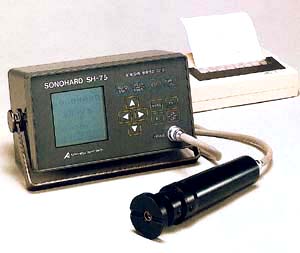

소형, 경량의 휴대용 (본체: 1.5 kg, 프루브
0.4 kg)
