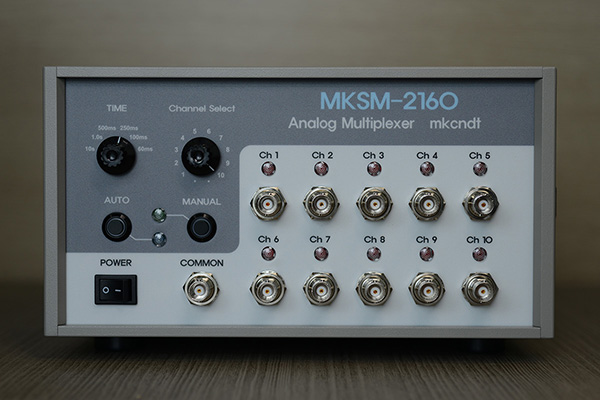

| Model |
MKSM-2160 |
| Input / Output Analog Signal |
| Input / Output Connectors |
BNC |
| Max. Voltage |
Military Specification 900VRMS (2,545Vpp) |
| Max. Current |
8ARMS |
| Impedance |
50Ω |
| Frequency |
DC-100MHz bandwidth |
| Channel Select |
1 to 10 |
| Switching Speed Time Select |
10s, 1.0s, 500ms, 250ms, 100ms, 60ms |
| Switch |
Electromechanical |
| Durability |
20,000,000 operations min. (at 18,000 operations/hr) |
| Contact Resistance |
30MΩ max. |
| Insulation Resistance |
100MΩ min. |
| Operating temperature |
0°C to 70°C |
| Power |
AC85-265VAC, 50-60Hz 2A Free Voltage |
| Dimensions |
H 132.5mm x W 250mm x D 300mm |
| Weight |
6kg |
|
