The best advantage of MsS is long range inspection.
Especially it is excellent in pipeline inspection, wire
rope inspection in suspension bridge, structural health
monitoring and buried materials.
It is also very useful for study of wave propagation
properties and material properties. MsSR-2020D is
applied in gas companies, petrochemical, air craft,
ship building, offshore and research institute.


APPLICABLE AREAS
  Real time monitoring of critical pipeline defect and corrosion (pipelines carrying
    chlorine gas, sulfuric acid, nitric acid, hydrochloric acid, ammonia)
  Real time monitoring of gas pipeline buried under ground or ocean
  I or H beam corrosion under ground
  Steel plate defect inside a building structure
  Bridge girder, suspension bridge cable
  Real time monitoring and inspection of storage tank or pressure vessel
  Submerged structure, caisson, Ship hull, Heat exchanger tube inspection that is
    bent and difficult to reach with conventional sensors
  Anchor rod inspection
  Real time monitoring of air craft fuselage, wing or space craft fuselage
  Guided wave research


RESEARCH AREAS
  Wave propagation properties
  Materials properties
  Wave interaction with defects or geometric changes
  Nondestructive evaluation (NDE)
  Industrial measurement applications (position, length, temperature, vibration, etc.)
  Fracture, shock waves, and acoustic emission

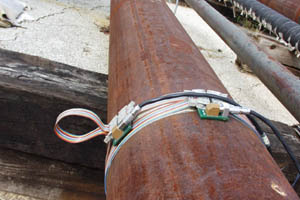

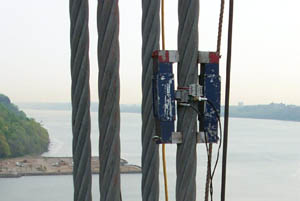

Pipeline (Click to enlarge)  Wirerope (Click to enlarge)

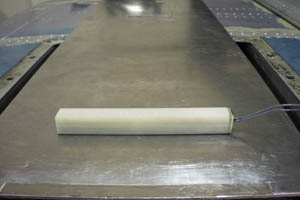

Air Craft (Click to enlarge)  Steel Sheet (Click to enlarge)

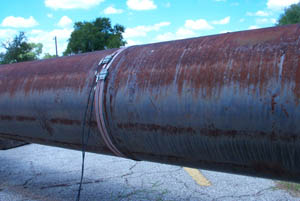

  Pipeline (Click to enlarge)
