MsSR-2020D uses a notebook to
observe the waveforms.
With MsSR-2020D, clean signal is
acquired to detect 2 ~ 3% corrosion
of the cross  section.

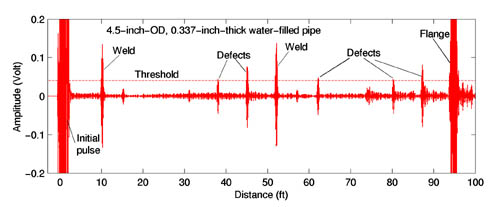

RF Signal

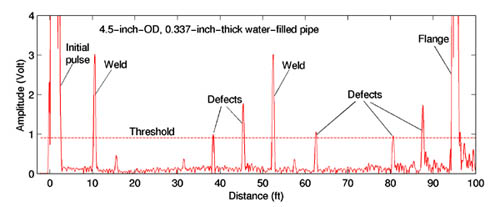

Processed Signal

Detected signals from a 4.5-in. (114.3-mm)-OD, schedule 80,
steel sample when the pipe was filled with air.

And filled with water.

The configuration fo the pipe sample is shown in.
